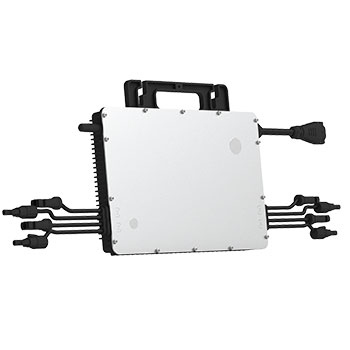

Micro inversor Hoymiles de 2000W 4T

Especificaciones Técnicas

Model HMS-1800-4T HMS-2000-4T
Input Data(DC)
Commonly used module power(W) 360~565 400~625
Peak power MPPT voltage range(V) 36~48 38~48
Start-up voltage(V) 22
Operating voltage range(V) 16~60
Maximum input voltage(V) 60
Maximum input current(A) 4*13.3 4*14
Output Data(AC)
Rated output power(VA) 1800 2000
Rated output current(A) 8.18 7.83 7.5 9.09 8.70 8.33
Nominal output voltage/range(V)1 220/180-275 230/180-275 240/180-275 220/180-275 230/180-275 240/180-275
Nominal frequency/range(Hz)1 50/45-55 or 60/55-65
Power factor(adjustable) >0.99 default
0.8 leading…0.8 lagging
Total harmonic distortion <3%
Maximum units per 10AWG branch 2 3 4 4 3 3 3
Efficiency
CEC peak efficiency 96.5%
Nominal MPPT efficiency 99.8%
Night power consumption(mW) <50
Mechanical Data
Ambient temperature range(℃) -40 ~ +65
Dimensions(W×H×D mm) 331*218*34.6
Weight (kg) 4.7
Enclosure rating Outdoor-NEMA6(IP67)
Cooling Natural convection-No fans
Features
Communication Sub-1G
Monitoring Hoymiles Monitoring System
Compliance EN 50549-1: 2019, VDE-R-N 4105: 2018, UL1741, ABNT NBR 16150, IEC/EN 62109-1/-2,
IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3
